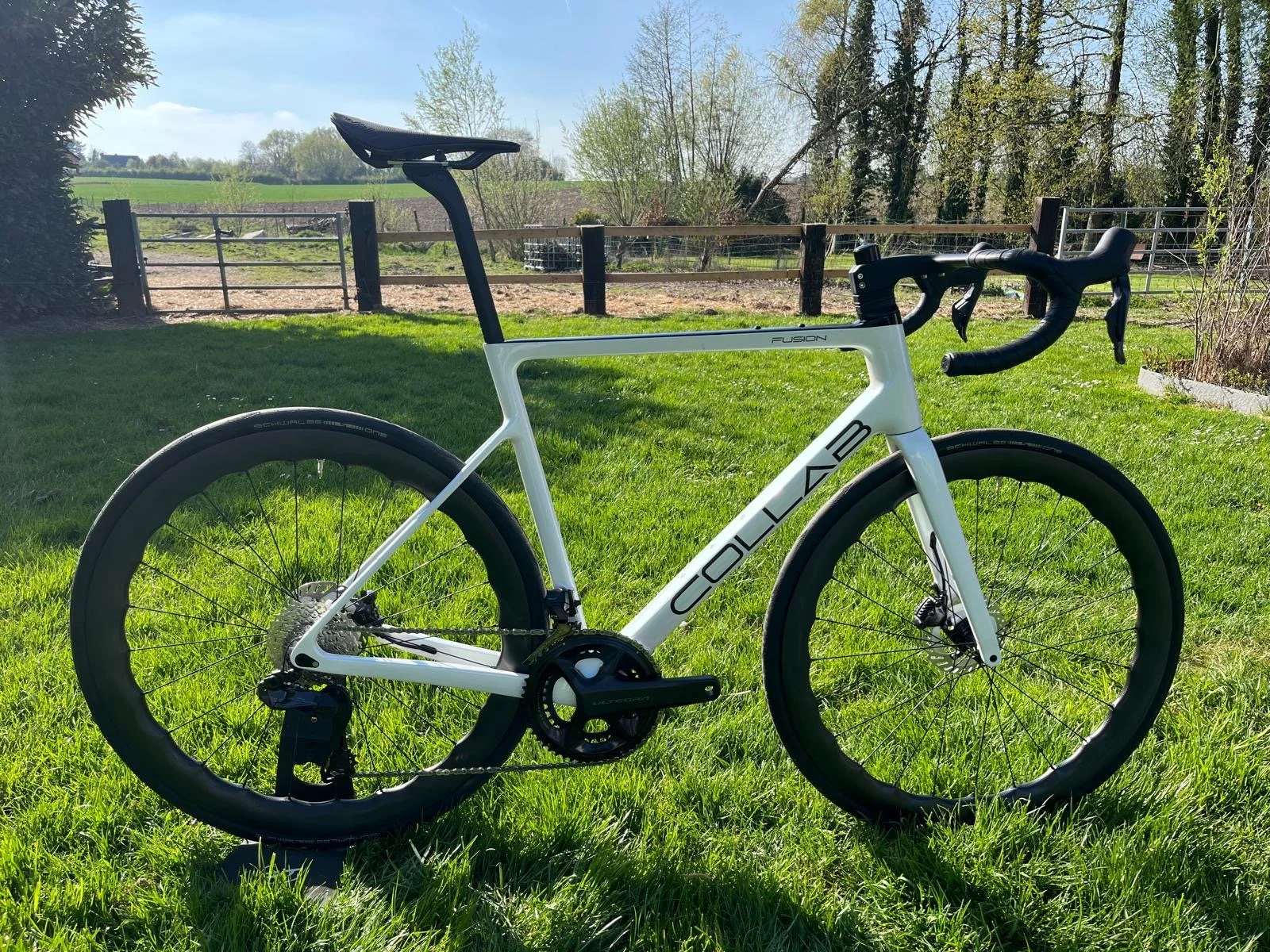

Racefiets
FUSION
Race Allround
-
Carbon road allround frame ( lightweight )
Frame details
-
Full Carbon T700 race allround Frameset
Frame sizes 50/53/56/59cm
Integrated carbon Handlebar
Full internal cable routing, drop 125mm, reach 81mm with DI2 holeWidth: 380/400/420/440mm (C-C)
Stem: 90/100/110/120/130mm
Weight 1050g（54cm / BB86); Fork 450g
Head Tube1 1/2” – 1 1/2” (Upper 52mm, down 52mm)
Seat Post Round Φ27.2mm, 350mm length, 25mm offset
Bottom Bracket BB86
Max Tire 700C*32C
O.L.DRear TA Φ12*142mm, Fork TA Φ12*100mm
Disc Brake Flat Mount 140mm or 160mm
Max Chainring 53-39T
Fork Offset 50mm
fork length 300mm
Spark
Race Aero Performance
-
Carbon road aero performance
Frame details
-
Full Carbon T700 race aero performance Frameset
Frame sizes 50/53/56/59cm
Integrated carbon Handlebar Full internal cable routing, drop 125mm, reach 81mm with DI2 hole
Width: 380/400/420/440mm (C-C)
Stem: 90/100/110/120/130mm
Weight 1050g（54cm / BB86); Fork 450g
Head Tube1 1/2” – 1 1/2” (Upper 52mm, down 52mm)
Seat Post special to frame
Bottom Bracket BB86
Max Tire 700C*30C
O.L.DRear TA Φ12*142mm, Fork TA Φ12*100mm
Disc Brake Flat Mount 140mm or 160mm
Max Chainring 53-39T
Fork Offset 50mm
fork length 300mm
THRIVE
Road Endurance Aero
-
Carbon road aero endurance frame
Frame details
-
Full Carbon T700 Racing Frameset
Frame sizes 47/50/53/56/59 cm
Integrated carbon Handlebar
Full internal cable routing, drop 125mm, reach 81mm with DI2 hole
Width: 380/400/420/440mm (C-C)
Stem: 90/100/110/120/130mm
Weight 1100g/Size 53cM
Head Tube Straight 1- 1/2”Headtube
Seat Post special to frame
Specific 350mm length, 15mm offsetBottom Bracket BB86
Max Tire 700C*30
O.L.DRear TA Φ12*142mm, Fork TA Φ12*100mm
Disc Brake Flat Mount 140mm or 160mm
Max Chainring 53-39T
Fork Offset 50mm
fork length 300mm
Race performance Aero
