Gravelbikes

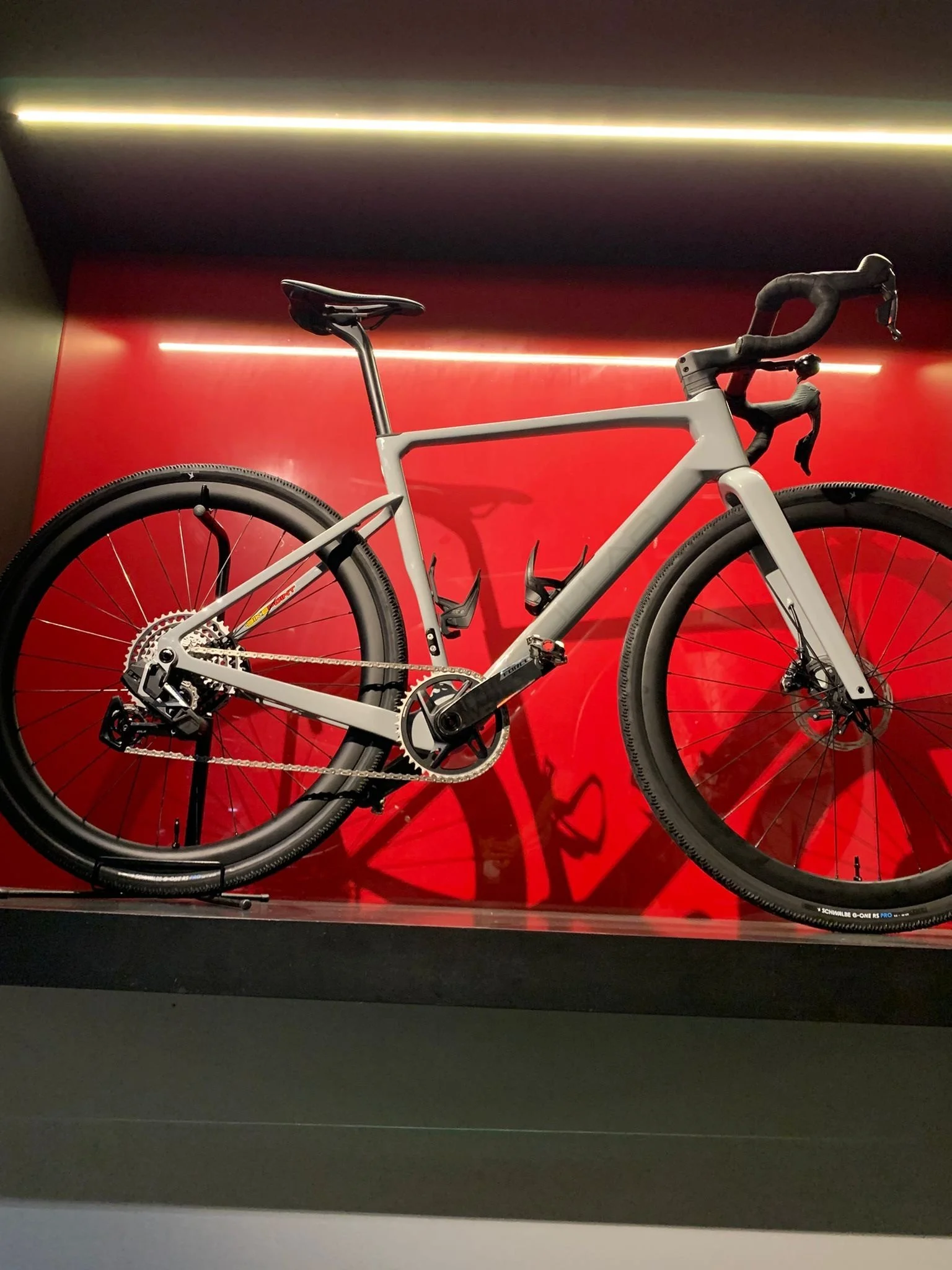

PULSE

Gravel race

  • Carbon gravel race frame

Frame details

  • Full Carbon T700 Racing GRAVEL RACE Frameset semi integrated

    Frame sizes 49/52/54/56/59cm

    Semi-internal (cables run from downtube)

    Cable Plug Mechanical and DI2(2 in 1)

    Weight 1080g（54cm / BB86); Fork 450g

    1 1/8" – 1 1/2" (upper 42mm lower 52mm, FSA standard)

    Full carbon seat post, OD 27.2mm, 25mm offset, 350mm length

    Bottom Bracket BB86

    Max Tire 700C*45C or 650B*2.2"

    O.L.DRear TA Φ12*142mm, Fork TA Φ12*100mm

    Disc Brake Flat Mount 140mm or 160mm

    Max Chainring 53-39T

    Fork Offset 50mm

JOURNEY

Gravel Endurance

  • Carbon gravel endurance frame

Frame details

  • Full Carbon T700 Racing GRAVEL endurance Frameset

    Frame sizes 49/52/54/56/59cm

    Stem Sizes 75/90/100/110/120mm

    Cable Plug Mechanical and DI2(2 in 1)

    Weight 1050g（54cm / BB86); Fork 450g

    Head tube 1 1/2" – 1 1/2" (upper 52mm lower 52mm, FSA standard)

    Fork Full internal cable routing, 50mm offset

    Seat Post Full carbon seat post, OD 27.2mm, 25mm offset, 350mm length

    Bottom Bracket BB86

    Max Tire 700C*50C or 650B*2.25"

    O.L.DRear TA Φ12*142mm, Fork TA Φ12*100mm

    Disc Brake Flat Mount 140mm or 160mm

    Max Chainring 50-34T

    Fork Offset 50mm

EXPLORER

Gravel Endurance Bikepacking

  • Carbon gravel endurance trekking frame

Frame details

  • Full Carbon T700 Racing GRAVEL endurance bikepacking Frame

    Frame sizes 49/52/54/56/59cm

    Stem Sizes 90/100/110/120mm

    Fully-hidden cable routings

    Weight 1050g（54cm / BB86); Fork 450g

    Head Tube 1 1/2" – 1 1/2" (upper 52mm lower 52mm, FSA standar)

    Seat Post Full carbon seat post, OD 31.6mm, 25mm offset, 350mm length

    Bottom Bracket BB86

    Max Tire 700C*50C or 650B*2.25"

    O.L.DRear TA Φ12*142mm, Fork TA Φ12*100mm

    Disc Brake Flat Mount 140mm or 160mm

    Max Chainring 50-34T

    Fork Offset 50mm

    fork length 300mm

    Gravel bikepacking frame

Gravel Finna landscape Alu

  • Alu gravel endurance trekking frame

Frame details

  • FRAME MATERIAL

    ALUMINIUM 6061

    FORK MATERIAL

    CARBON

    FORK LENGTH

    405 mm

    FORK OFFSET

    45º

    TIRE CLEARANCE

    700c x 48

    Headset

    TAPPERED

    FRONT AXLE

    15x100

    REAR AXLE

    12x142

    Brake Disc

    FRONT: 160mm / REAR: 140 mm

    Bottom Bracket

    68 mm threaded

    Max Crankset Ring (1x)

    42 T

    Max Crankset Ring (2x)

    Road 28/44T; MTB 38/48T

    Front Derailleur

    Bottom Pull 31,8 mm

    SPECIALITY

    GRAVEL

    WEIGHT

    3200 g

    BRAKE ADAPTER

    FLAT MOUNT
